Structural Repair Consumables - Bolt / Weld Nut / Stud / Adhesive / Plug / Ground Weld Stud with Nut / Rivetable Stud For Tesla Model 3

Description:

• Fitment / Compatibility: For Tesla Model 3 Bolt / Weld Nut / Stud / Adhesive / Plug / Ground Weld Stud with Nut / Rivetable Stud
• Reference Part Number:

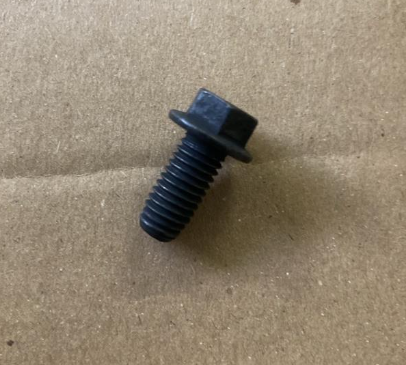

• 1011818-00-A(Bolt, Metric M8×16 mm, Hex Flange M6, Grade 10.9, Zinc-Aluminum Plated, Hex Head, Outer Diameter 14.9 mm);3 Order In Quantity

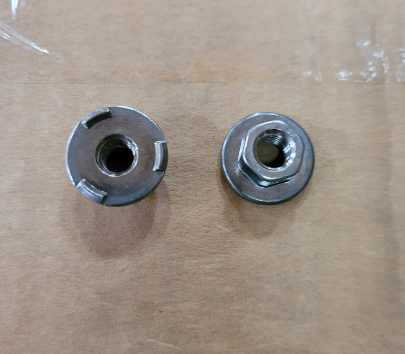

• 1077796-00-A(Weld Nut, Hex Flange, Metric M8, Steel [Grade 10]);2 Order In Quantity
• 1100182-00-A(Stud, Special, Metric M6×16 mm, Steel [Grade 88], Zinc Nickel Plated, Self-Drilling)

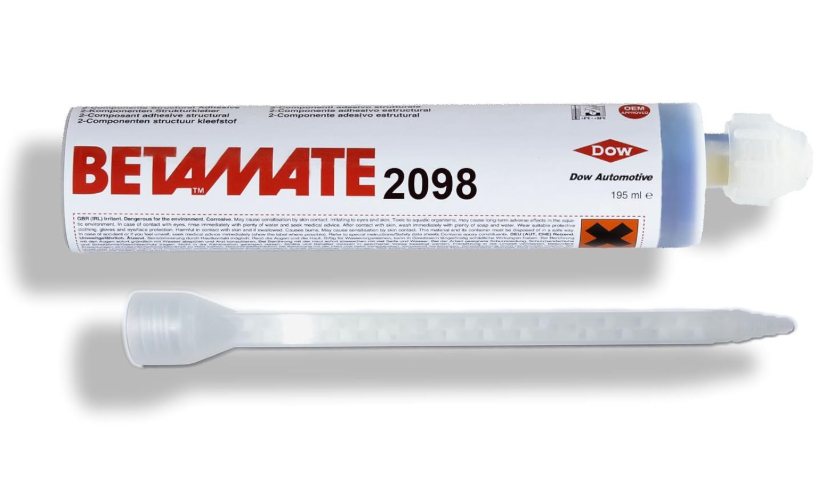

• 1104826-00-A(Adhesive, Betamate 2098 Kit)

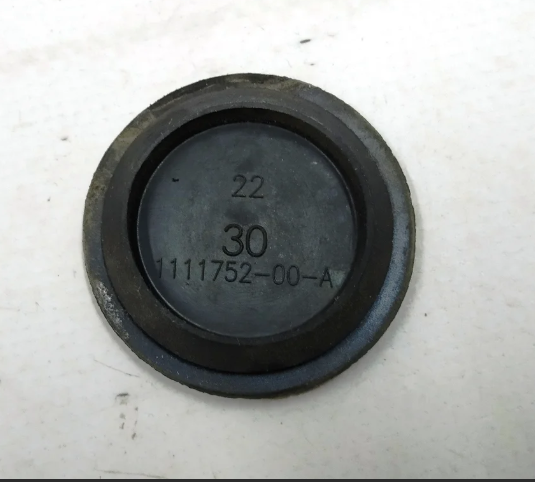

• 1111752-00-A(Plug, 30×8.18 mm, EPDM Rubber, Black);Used on sides of M3 Sill Inner Cap both sides

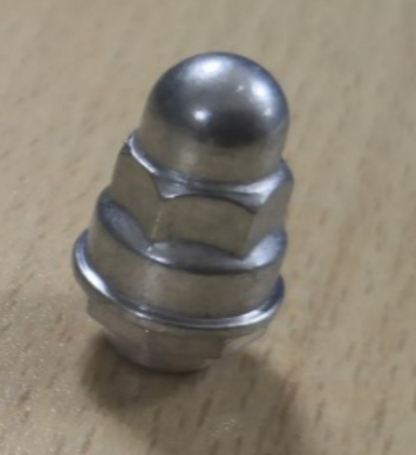

• 1446746-00-A(Ground Weld Stud with Nut, Metric M6×15 mm, Steel [Grade 88], Tin-Zinc Plated, Masked)

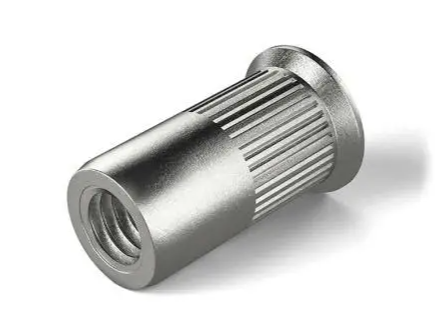

• 1893934-00-A(Rivetable Stud, Metric M6×15 mm);GFSH NEW BIW PARTS REQUEST. IF YOU ORDER 1099613-SC-A/1487846-SC-A/1487845-SC-A/1108147-                                        S0-A/1121054-SC-A/1104199-SC-A/1104200-SC-A PLEASE ORDER 1893934-00-A FOR REPAIR.


Specification:

• Condition: New with high quality
• Fitment Type: Direct Replacement

Note:

• Price and order is per individual rivet.
• Please check the part number and compare it with the pictures before purchasing to ensure proper fitment. If you have any questions, please send us a message.
